When energy is cheap you don’t often worry about the cost of using heat for humidity control. This is because the advantages of a good yielding and disease free crop far outweigh the cost of controlling humidity. However, when the cost of energy increases, you are left asking "Can I afford to control humidity?"
In 2008 high energy prices led one nursery to take the view that active humidity control should be minimized that year. This may have left them exposed to potential disease problems; so was it the right decision? In this article, Nathalie Key with AHDB describes a study they carried out on humidity control strategies.
A comparison of humidity strategies
"We compare the performance of two identical greenhouses operating under two different humidity control strategies – with optimized humidity control and with no active humidity control."
The size and layout of the nursery gave the researchers the unique opportunity to compare the performance of two identical greenhouses operating under different humidity control strategies. They therefore did side by side comparisons of the following two approaches.
The graphs in Figures 1 and 2 show the heating pipe temperatures and the climate in the two greenhouses on the same day.

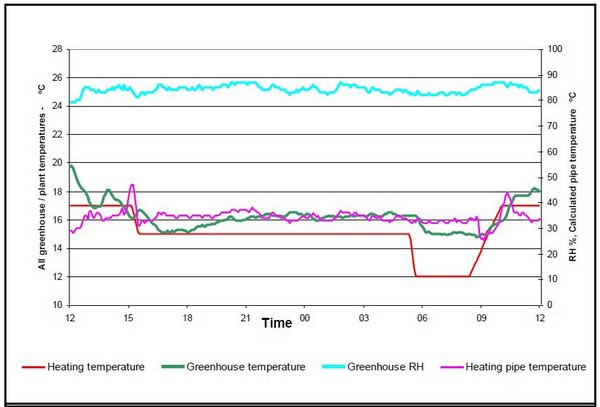

Figure 1: Greenhouse with humidity control

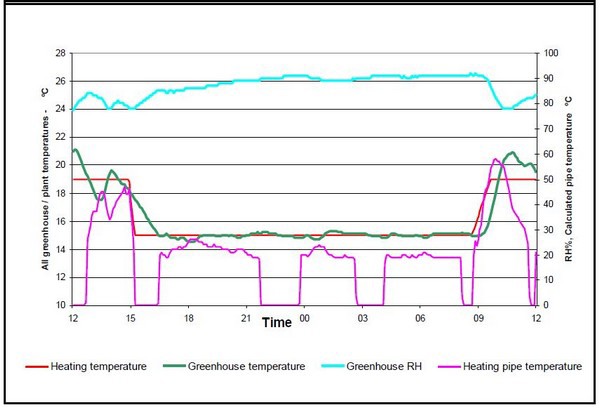

Figure 2: Greenhouse without humidity control
"If we look at the night period we can see that the greenhouse with humidity control had an average RH of 85% compared to 90% in the ‘no control’ greenhouse. However, to achieve this, the pipe temperature in the humidity control house was 10oC hotter."
What does humidity control cost?
"We calculate the cost of our optimized humidity control strategy and consider the potential advantages and value of such a strategy."
Over the period from 16:00hrs to 08:00hrs:
Active humidity control required heating for the entire 14 hours at an average pipe temperature of 35o, and no humidity control used heat for 12½ hours at an average pipe temperature of 21o
"We can use this information with data about the greenhouse temperature, heating pipe length and diameter and boiler efficiency to calculate the heat used in each scenario."

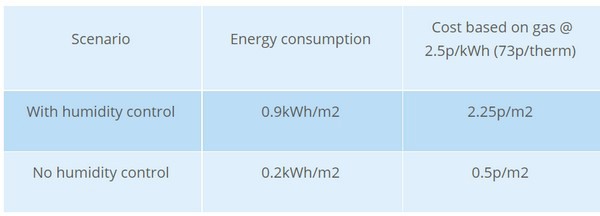

On this night the active humidity control used 0.7kWh/m2 more energy, costing an additional 1.75p/m2. Based on the plant density of 9 plants/m2, the cost of humidity control on this night was therefore 0.2p/plant.
However, don’t assume that humidity control costs 0.2p/plant every night. This was a worst case night with mild temperatures; so humidity control was particularly difficult. On a colder night more heat would have been needed to maintain the temperature in the ‘no humidity control’ block and the differences between the treatments would have been equaled out.
